Commercial Building Project

Location:

EU

Software:

Revit 2019, Navisworks 2019

Inputs:

Bimcollab issues and Design stage PDF Drawings

Plot Area:

4,67,874 SF

Deliverables:

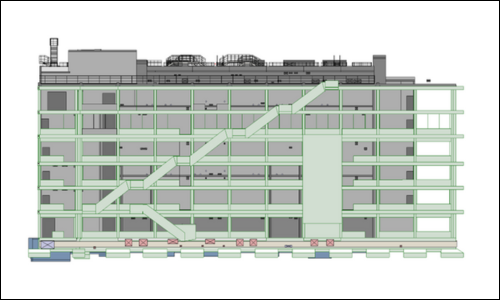

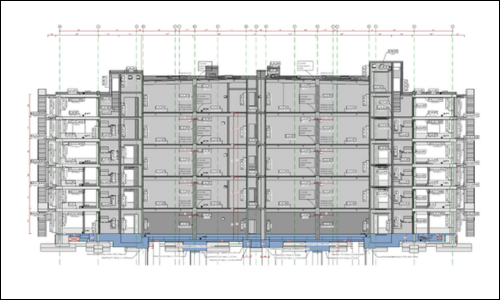

Revit model at LOD300, Formwork & Position drawings

Project Summary:

01. Project is mainly about Structural elements, demolition of given highlighted areas and building new ones, keeping the surrounding periphery structure (Existing) as is.

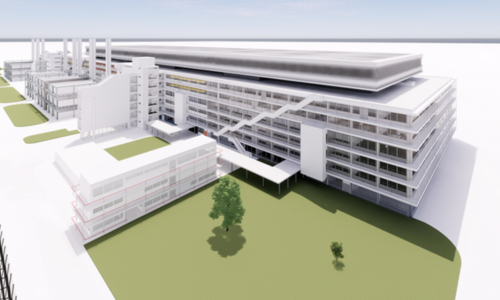

02. Overall the project consists of 4 buildings with a Whitespace area (TT-slabs), Corridors, Staircases, Existing area, Gensets (Container & cooler structure).
03. There are a total of 4 similar types of buildings which are consisting 8-whitespaces, 9-staircases, 8-corridors, 4-Genset structures.

Scope of Work:

01. Updating the existing structural elements as per the received inputs and to co-ordinate with MEP services.

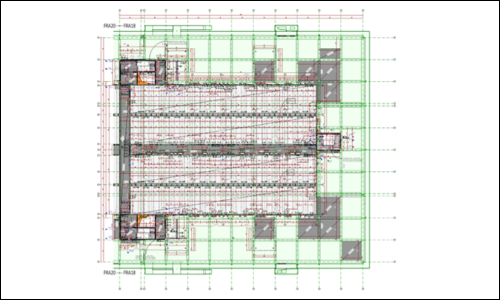

02. To create Formwork, Position & Staircase drawings.
03. Exporting and uploading .ifc, .nwd models on weekly basis.
