Mixed Used Apartments Project
Get to know more about the project below
Location:
US
Software:
Revit 2020, Revit 2021, Bluebeam.
Inputs:
Design stage CAD and PDF Drawings
Plot Area:
7,005 SF.
Deliverables:
Revit model at LOD300, DD & CD drawings, & Rendering views.
Scope of work:
01. BIM models include slabs/floors, walls, roof, doors, windows, stairs, floor finishes, and ceilings.
02. Create Unit model groups for typical floors along with Kitchen & Bathroom model groups.
03. Prepare documents to comply with SD & CD stage.
04. Rendering views in Enscape software.
Project Summary:

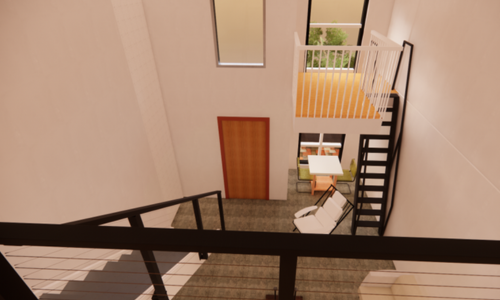

01. Private housing project, privately funded, four stories, two double heighted floors, two single heighted floors with tuck under surface parking rear alley.
02. 2 Commercial units, 1,103 sf (Retail sales for food beverage, groceries, pharmaceuticals sales) along with 24 affordable dwelling units 540 sf average.

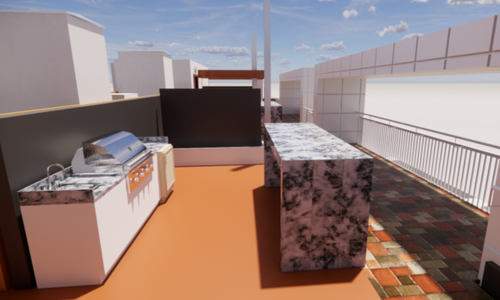

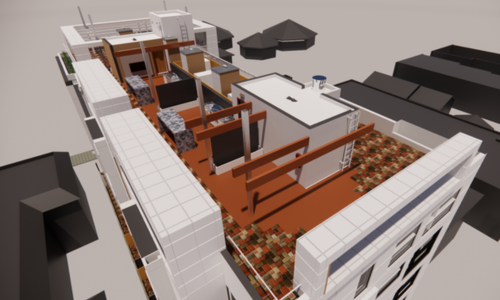

03. Building roof top offers amenities like walking/jogging paths along with Barbeque stations & roof top gardens.
