Air Separation Unit (ASU) Project
Get to know more about the project below
Client:
Industrial Gases Manufacturer (India)
Sector:
Industrial Gases / Cryogenics / Oxygen & Nitrogen Generation
Softwares:
AutoCAD Plant 3D, STAAD Pro Connect, Ceaser II, Tekla
Scope:
We were appointed as DEC to provide engineering services for an Air Separation Unit (ASU) with a capacity of up to 1250 TPD.
Project Overview:

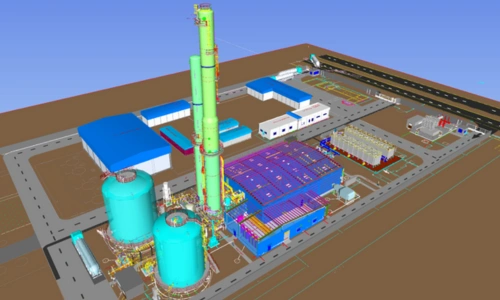

Pan Gulf Technologies supported a large-scale Air Separation Unit (ASU) setup, delivering detailed engineering and modeling of cryogenic oxygen and nitrogen production lines.
Scope of Work:

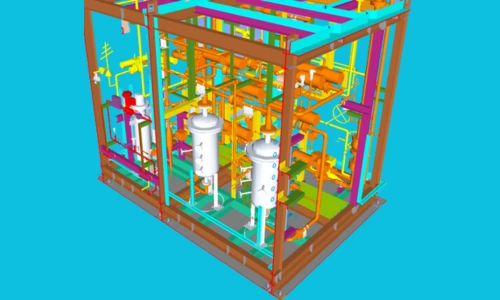

01. 3D modeling of distillation columns, heat exchangers, and pipe racks

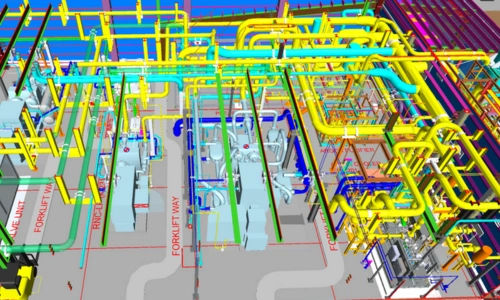

02. Cryogenic piping with insulation and support design
03. Foundation design for compressors and cold boxes
04. General arrangement and isometric drawings
05. BOM/MTO generation for procurement planning
Key Challenges:
01. Cryogenic insulation handling in tight routing paths
02. Heavy equipment modeling with tight elevation tolerances
03. Risk mitigation for high-pressure oxygen circuits
Key Challenges:
01. Cryogenic insulation handling in tight routing paths
02. Heavy equipment modeling with tight elevation tolerances
03. Risk mitigation for high-pressure oxygen circuits
