Combined Cycle Power Plant Project

Get to know more about the project below

Above the Project:

This project involved electrical and instrumentation engineering design and detailing services for an 800 MW Combined Cycle Power Plant Project. The facility comprises a gas turbine with generator, a Heat Recovery Steam Generator (HRSG), and a steam turbine with generator, enabling efficient combined cycle power generation. The scope focused on delivering coordinated electrical and instrumentation designs to support power generation, distribution, control, and automation systems across the plant. All engineering deliverables were developed in compliance with IEC, CEI, UNI, ISO, and IEEE standards, ensuring regulatory adherence, operational reliability, and long-term performance.

Scope of Work & Deliverables:

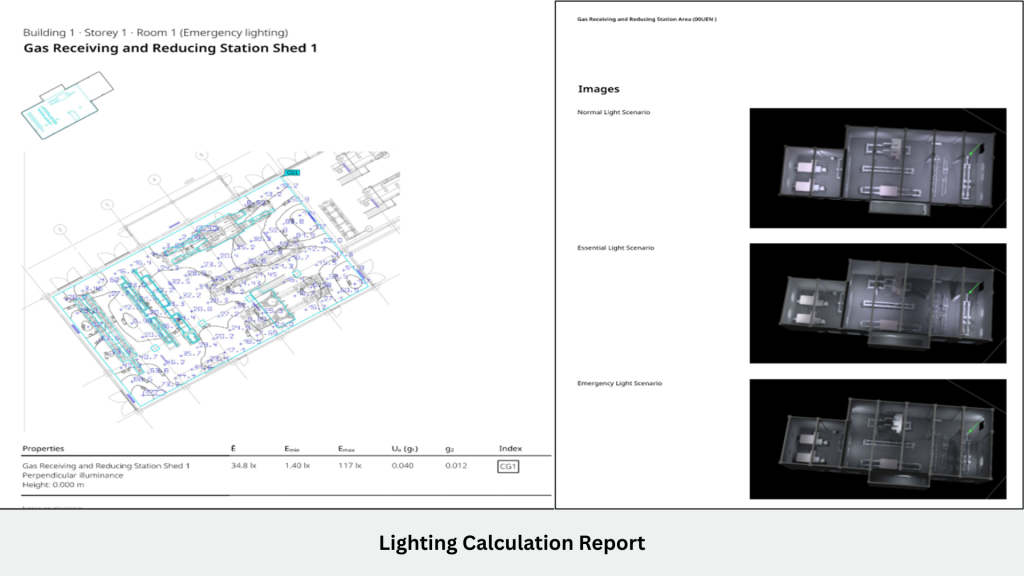

• Lighting Calculation
• Lighting & Socket System Layout (Approx. • 18000 lights)
• Light & socket Block diagram
• Secondary Grounding System Layout

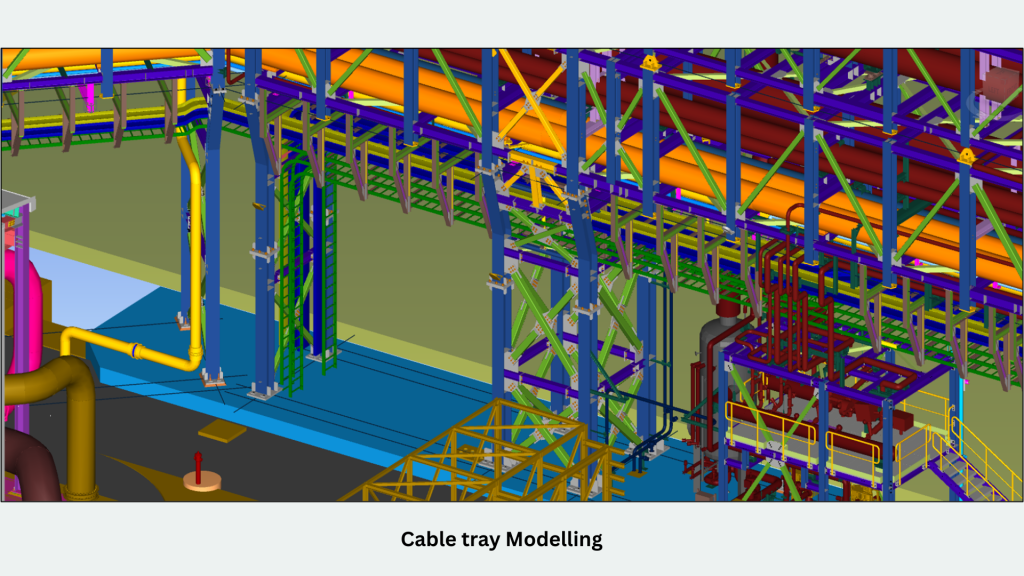

• Cable tray 3D modelling
• Cable list
• Cable tray layout
• Installation details
• MTO for lights/earthing/ sockets

Conclusion:

Pan Gulf Technologies Limited successfully delivered a high-quality, standards-compliant electrical engineering solution for this large-scale combined cycle power plant by adopting a detail-driven and coordinated design approach. Through precise modelling, accurate calculations, and comprehensive documentation, the team ensured constructability, reduced on-site risks, and streamlined execution for the EPC and construction teams. The project demonstrates Pan Gulf Technologies Limited’s capability to support complex power generation facilities with scalable, reliable, and regulation-compliant electrical engineering services.
