Electrical Element Parameter Automation​

The primary objective of Electrical Element Parameter Automation tool is to automatically update parameter values of connected conduits and cable trays while modelling and to export schedules​

Scope

• Quick Update tool ​
• Parameters tool​
• Settings tool​
• Export Schedule tool​
• Cleanup Parameters tool ​

Benifit

• Streamlined workflow​
• Reduce error and save time​
• Increase Accuracy​

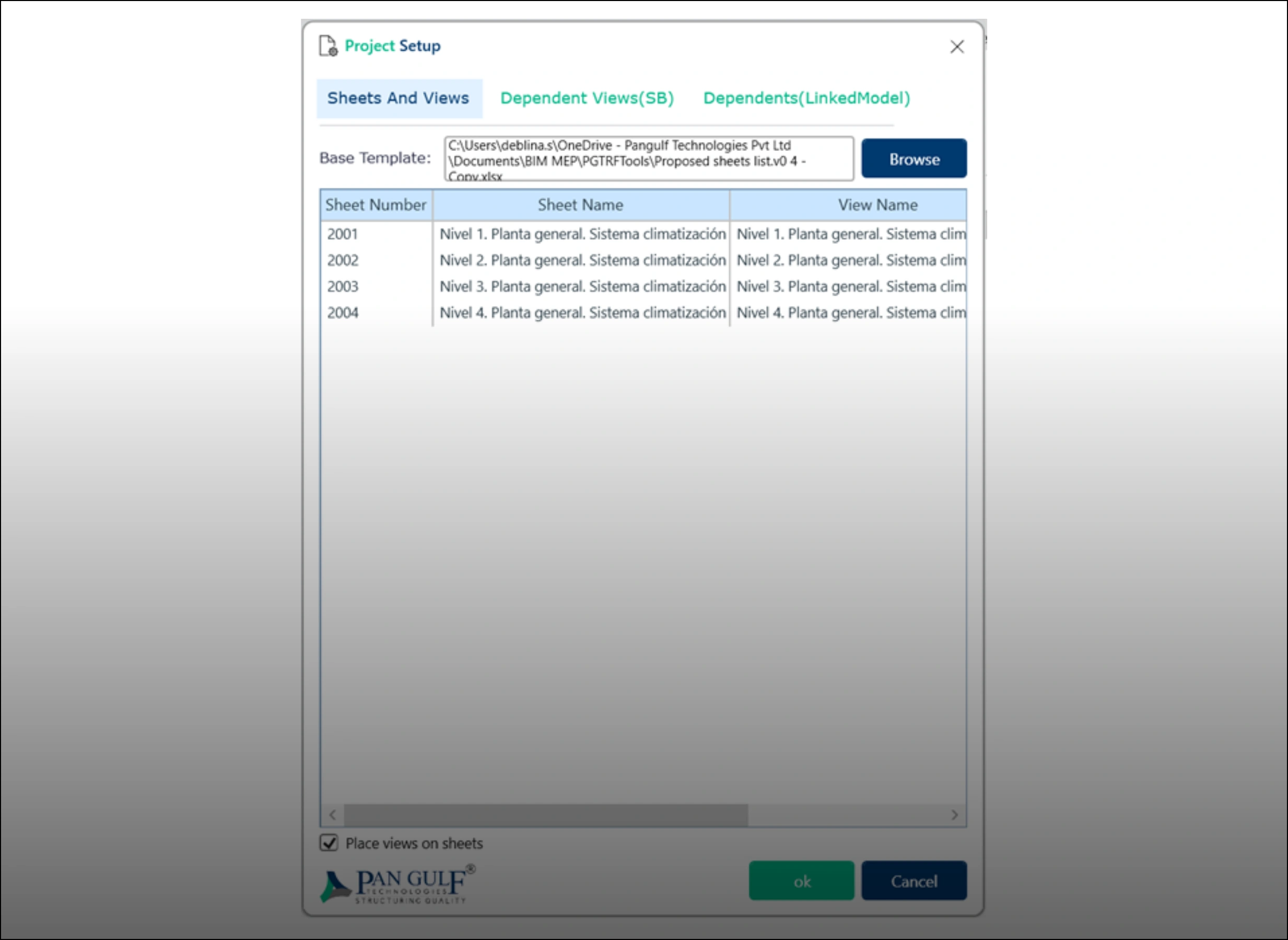

Sheet, View, and Dependency Management Plugin

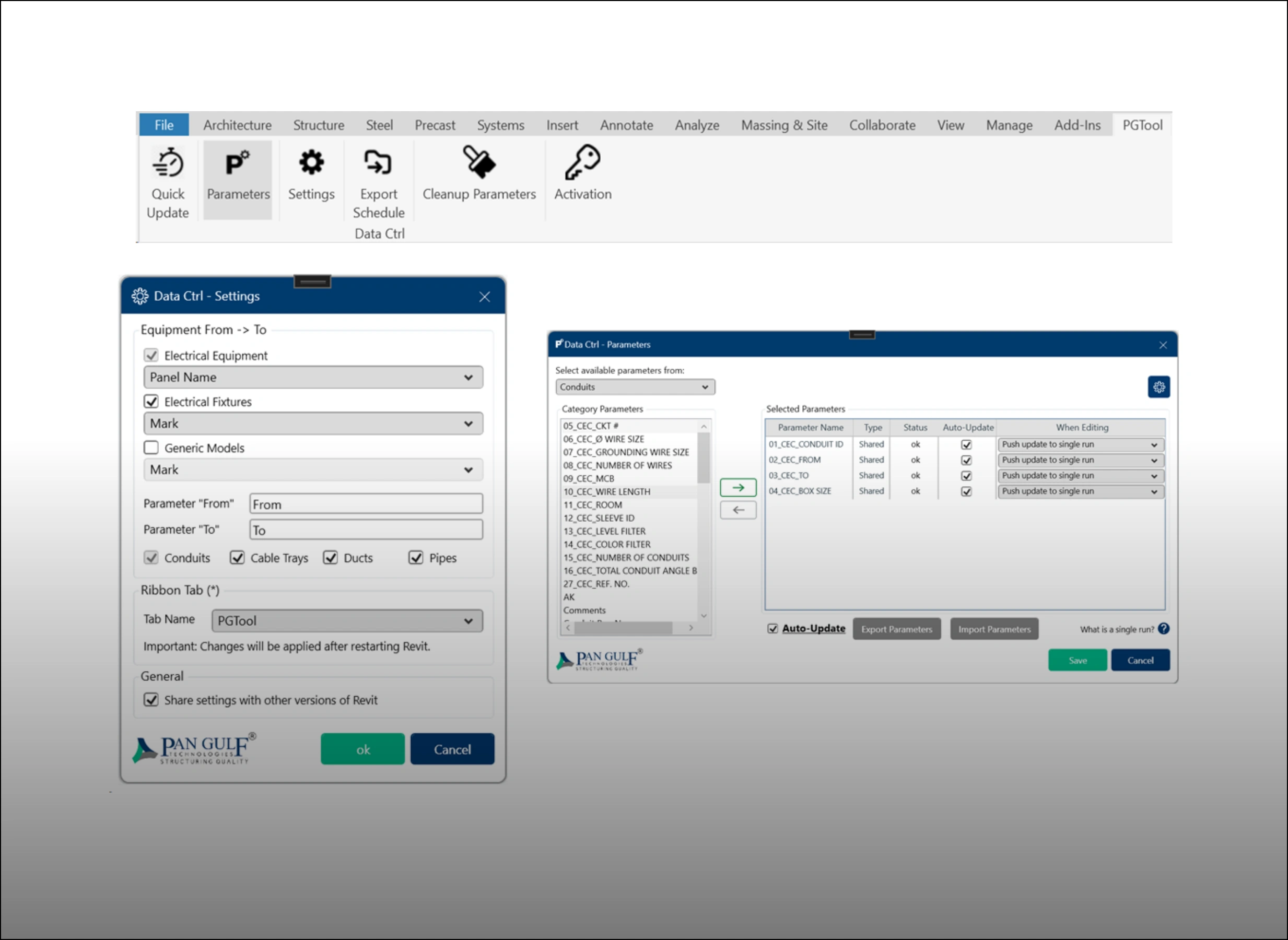

Parameters Tools Overview

Electrical Element Parameter Automation Tool facilitates the selection and management of parameters within Revit models. Users can efficiently update parameter values, categorizing them into conduits, cable trays, ducts, and pipes.

Use Cases / Features :

Parameter Cleanup:

Users can select specific parameters for modification from a predefined list based on categories.

Parameter Management:

The tool allows users to add or remove parameters seamlessly, enhancing workflow efficiency.

Auto-Update Feature:

Enables automatic updating of parameter values during modeling, ensuring real-time synchronization.

Import and Export:

Users can import selected parameters for ease of use and export them for sharing or backup purposes.

Customization:

Provides options to customize parameter settings according to project requirements, enhancing flexibility.
Electrical Element Parameter Automation

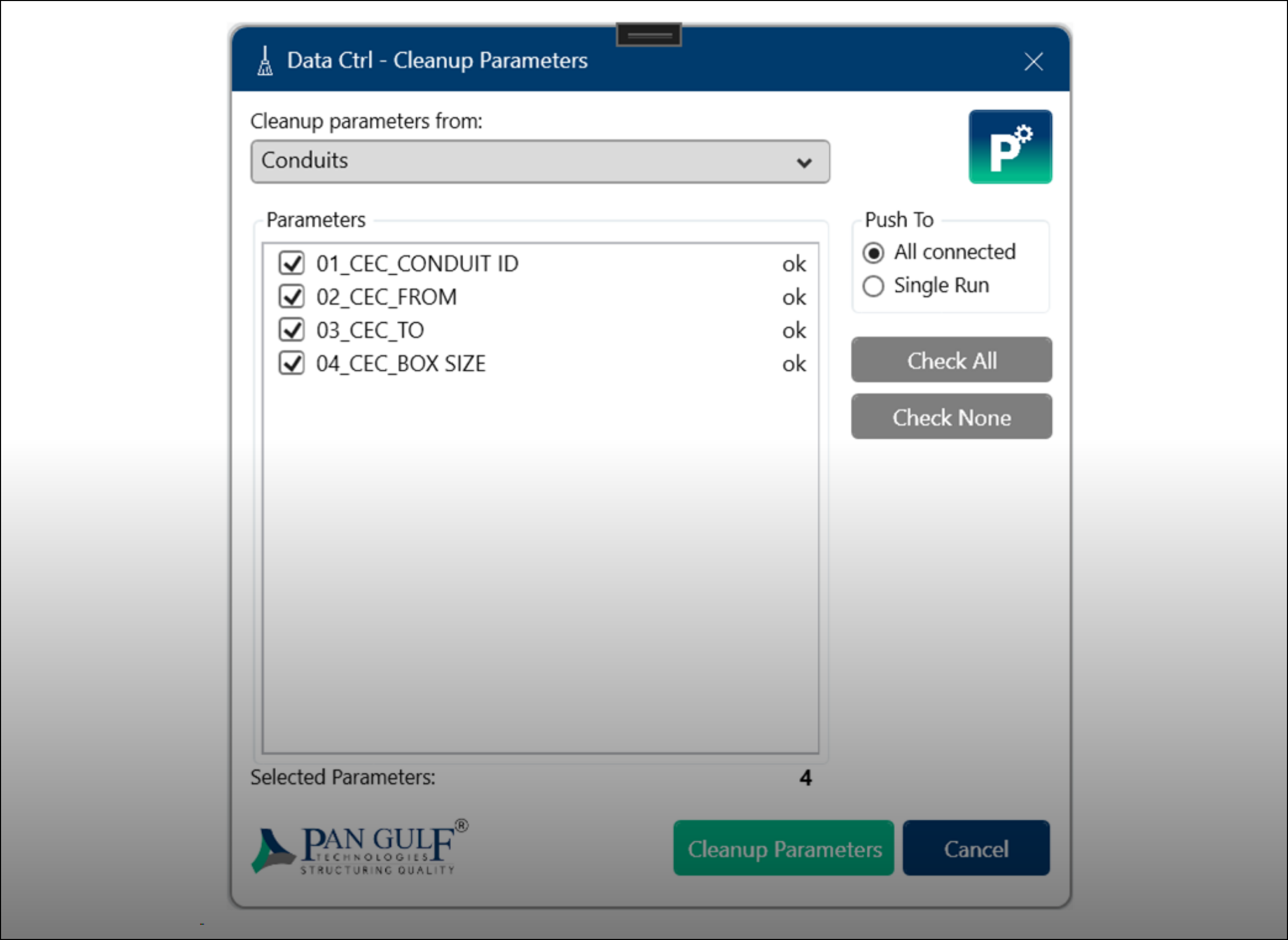

Cleanup Parameters Tool Overview

The Cleanup Parameter tool cleans up the parameter values of the connected conduits and cable trays.

Use Cases / Features :

Parameter Cleanup:

Users can select specific categories, such as conduits or cable trays, and clean up their associated parameter values.

Customization:

The tool allows users to choose which parameters to clean, offering flexibility and control over the cleanup process.

Connected Element Cleanup:

Users can opt to clean parameters of connected elements, such as conduits, to ensure consistency and accuracy across the model.

Efficient Workflow:

Streamlines the cleanup process by providing options to check or uncheck parameters and selecting the cleanup scope (all connected or single run).

Visual Feedback:

Offers visual feedback on the cleanup process, displaying the cleaned parameter values for verification.
Cleanup Parameters Tool Overview
