Steel Detailing Station Project

Steel Detailing Station Project USA required advanced Structural Steel Detailing Services to manage complex steel framing, platform structures, trusses, and heavy connection detailing.

This is one of the first projects in the Red & Purple Modernization (RPM) phase in the USA, aimed at improving the public transport system and providing citizens with the convenience of traveling via rail. The project includes accessible stations at Lawrence, Argyle, Berwyn, and Bryn Mawr in the USA.

PGT SCOPE:

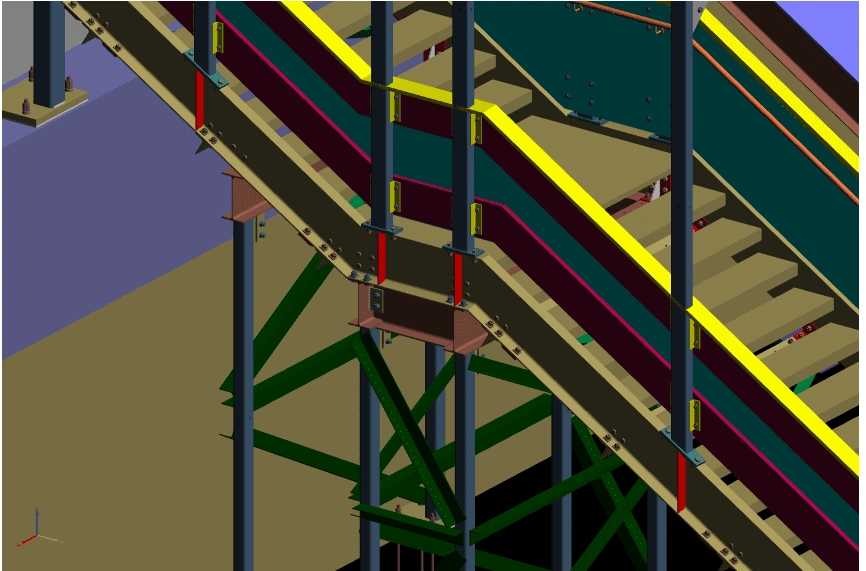

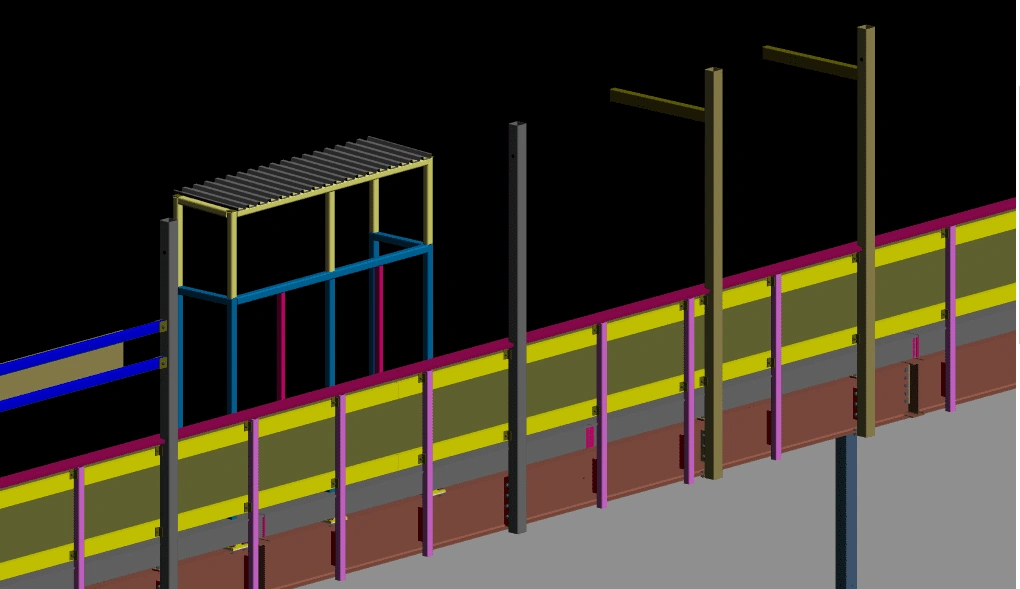

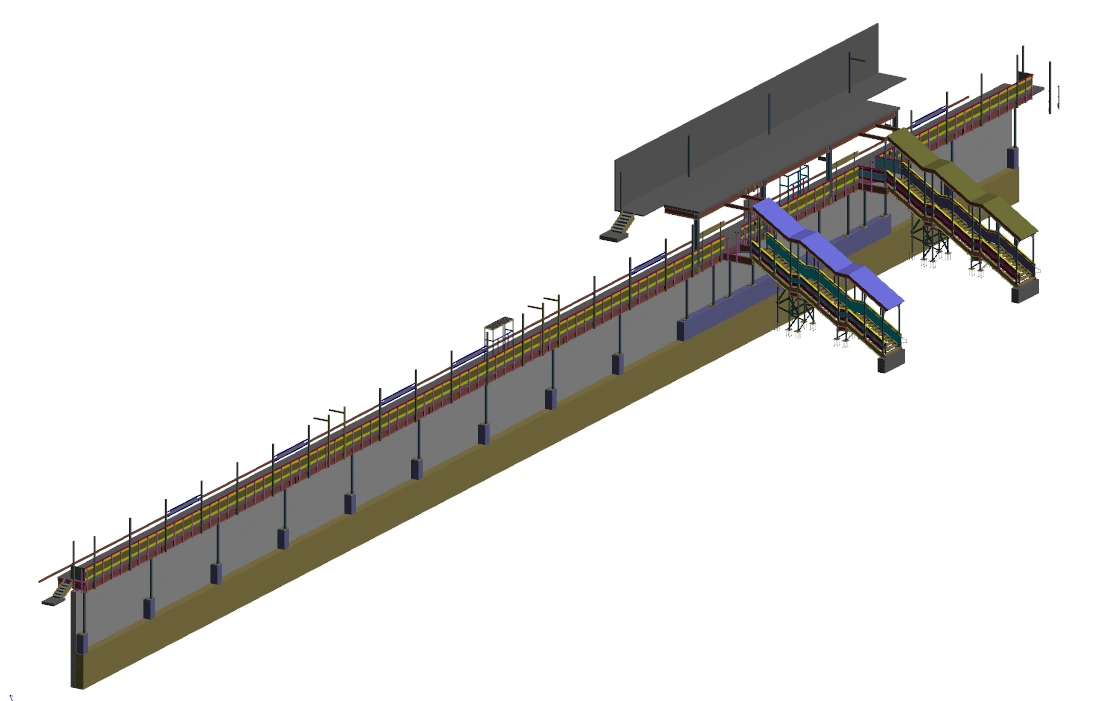

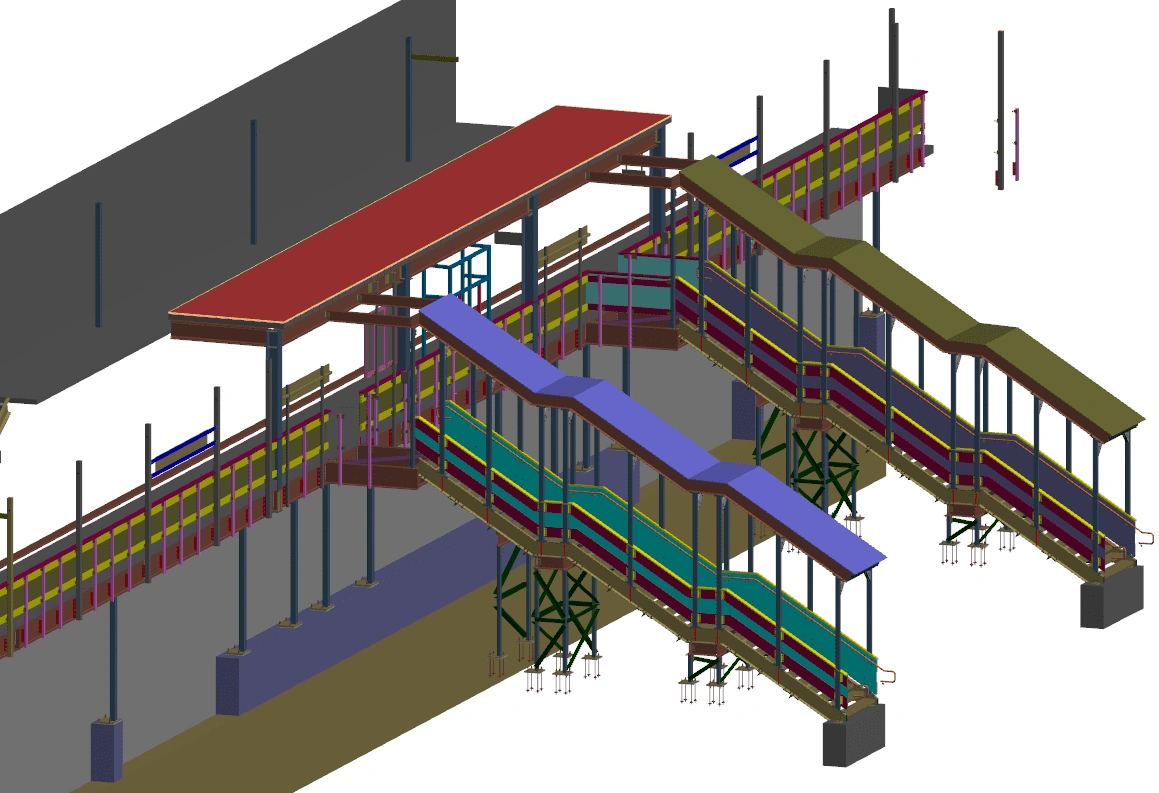

Model Creation in SDS/2, Structural
Steel detailing for Main & Misc. Steel

SOFTWARE USE:

SDS/2

TONNAGE:

170 Tons

PROJECT DELIVERABLES:

3D Model in SDS/2, Erection, Shop Drawings & Gather drawings., DXF Plates.,
KISS / NC Files
