Laser Scan to Intelligent 3D Modelling

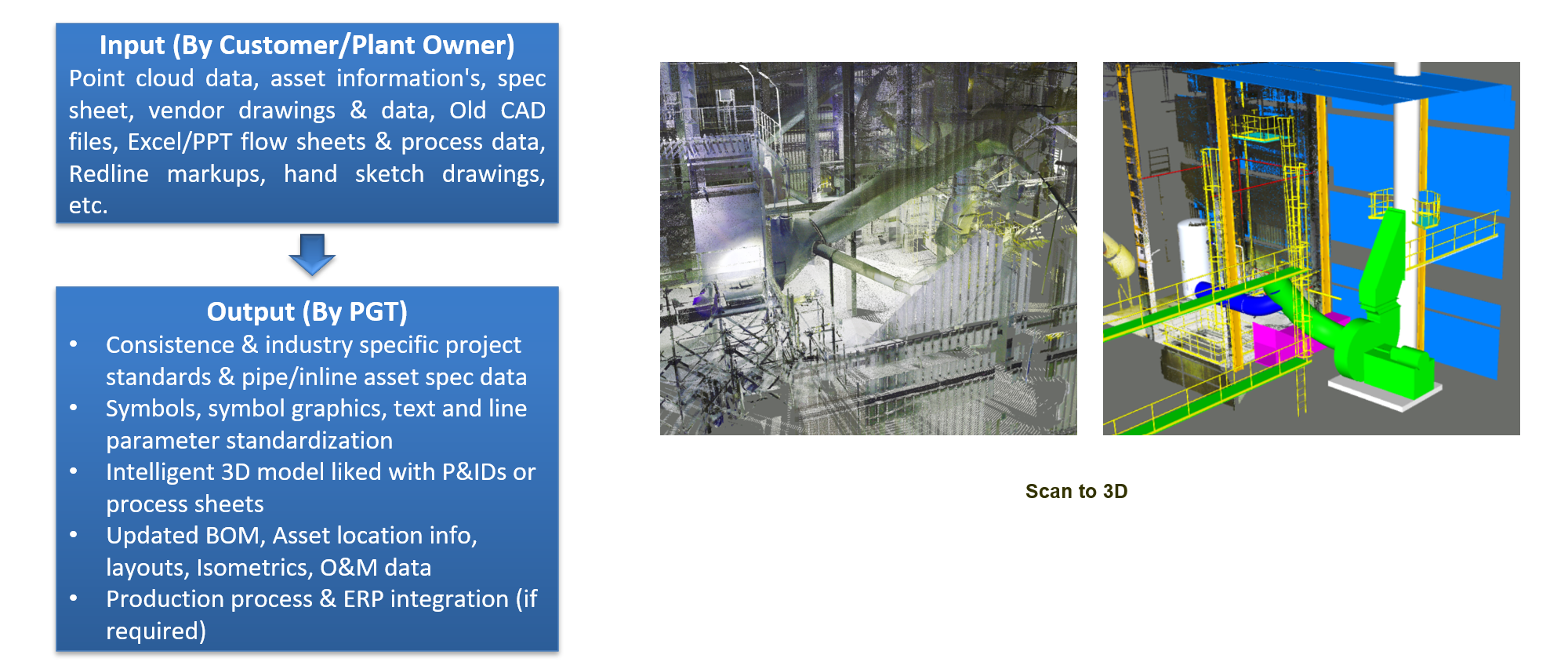

Our services deliver integrated engineering solutions to transform laser scan data into fully intelligent and accurate 3D plant models. Point cloud data is converted into intelligent 3D models and integrated with asset information, vendor drawings, legacy CAD files, redline markups, and hand sketches to develop complete plant models. Clash detection and deviation analysis are performed between point cloud data and 3D models to validate dimensional accuracy and identify as-built versus design discrepancies before finalizing deliverables. All models are developed in compliance with internationally recognized standards and applicable industry codes to ensure consistency, accuracy, and regulatory alignment.

A structured asset tagging and specification approach ensures every pipe, component, equipment item, and structural element is consistently defined and aligned with plant naming conventions and asset management systems. Intelligent 3D models are enriched with attribute data such as material specifications, insulation details, heat tracing requirements, and operating conditions, creating a fully searchable and maintainable digital asset. Models are cross-linked with P&IDs, process documents, and isometrics to maintain consistency across all engineering disciplines. Deliverables including BOMs, layout drawings, asset location data, and O&M documentation are generated directly from the model, while integration with enterprise systems such as SAP, PLM, and ERP enables streamlined operations, improved maintenance workflows, and enhanced plant efficiency.
